Intalok® Reveal Panel System

The Intalok® Reveal Panel System, also referred to as an interlocking panel, plank panel or cassette panel, is a versatile metal rainscreen solution designed for contemporary facades, soffits and feature cladding applications.

INTERLOCKING REVEAL PANELS FOR MODERN FACADES & RAINSCREEN CLADDING

Intalok® Reveal Panels are particularly suited to projects seeking a flat, clean and uniform facade appearance. Concealed fixings and precision formed interlocking joints create crisp shadow lines whilst maintaining a sleek architectural finish. Panels can be installed vertically, horizontally or diagonally, making the system suitable for cladding, facade applications, feature details and soffits.

Download Brochure

INTALOK® REVEAL PANEL RAINSCREEN CLADDING SYSTEM

Metal reveal panels are widely recognised for their durability, weather resistance and long-term performance. Manufactured from high quality architectural metals, the Intalok® Reveal Panel system is designed to withstand demanding environmental conditions including UV exposure, moisture and temperature variation without compromising structural integrity or appearance.

Each panel is designed with an engineered interlocking joint that conceals fixings and creates consistent spacing between panels. The simple interlocking arrangement supports efficient installation whilst maintaining the clean linear appearance associated with modern rainscreen cladding.

The system is designed for drained and ventilated facade construction and can be fabricated in a wide range of architectural metals including GreenCoat® PLX, zinc, copper, brass, bronze, stainless steel and precoated aluminium. Intalok® fabrications can accommodate bespoke features, trims, perforations and architectural details in matching materials and finishes.

In partnership with our network of highly skilled installers across the UK, we not only provide competitive quotes tailored to your project but also deliver comprehensive support and guidance. This commitment extends to self-installers, ensuring that they receive the assistance needed for a successful implementation of their projects.

Concealed Fixing
Aesthetics

Precision interlocking joints conceal fixings to create clean shadow lines and a sleek contemporary facade appearance.

Versatile Design
Flexibility

Suitable for horizontal, vertical or diagonal installation with multiple panel widths, reveal gaps and metal finish options available.

Durable Low Maintenance
Performance

Manufactured from high quality metals and designed to resist weathering, corrosion and UV exposure.

Lightweight Rainscreen
Solution

A lightweight ventilated rainscreen cladding solution suitable for modern facade, soffit and refurbishment applications.

CASE STUDY - AXA TRAINING CENTRE, LIVERPOOL FC TRAINING GROUND

The AXA Training Centre, located within the iconic Liverpool FC Training Ground, aimed to elevate its aesthetics while maintaining functionality and durability. The design team sought a modern, sleek appearance that would seamlessly blend with the football club’s dynamic environment.

The choice of materials was crucial in achieving the desired visual impact, and GreenCoat Reveal Panel in Anthracite Grey RAL 7011 emerged as the ideal solution. The sleek, modern appearance significantly enhanced the overall aesthetic of the facility, creating a visually appealing environment for both players and staff.

GreenCoat Reveal Panel Anthracite Grey RAL7011

CWCT Tested

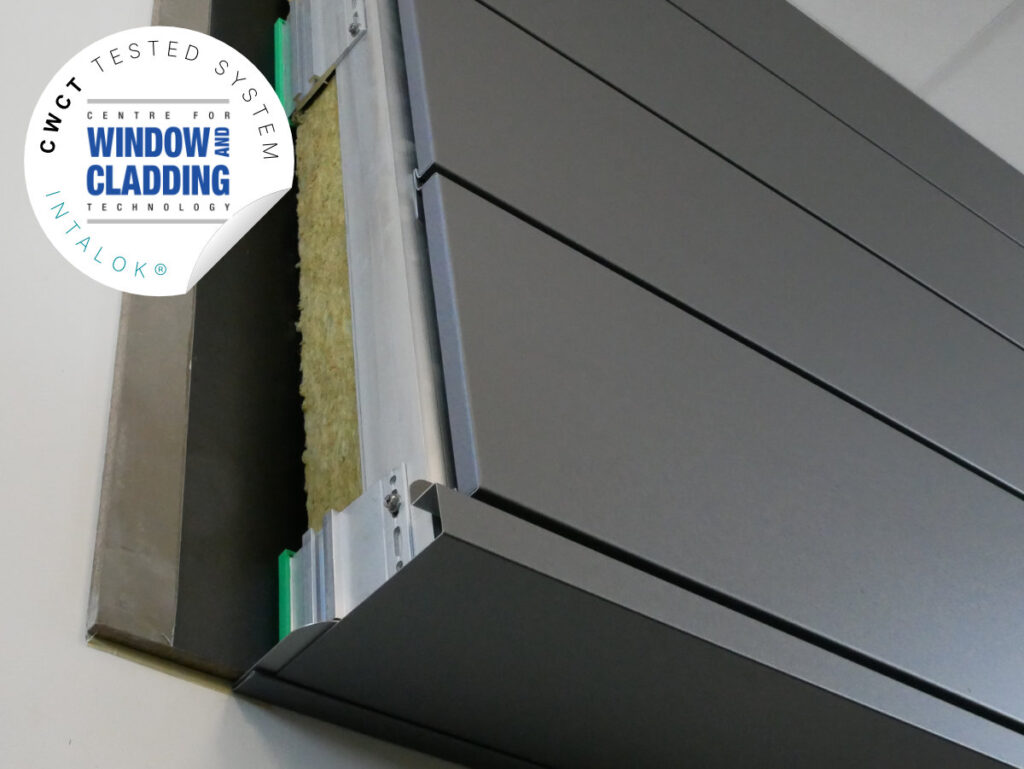

The Intalok® Reveal Panel system is available in a fully CWCT tested configuration, giving specifiers confidence in a proven system. The Centre for Window and Cladding Technology (CWCT) sets recognised industry standards for the performance of cladding systems through independent testing and guidance.

The tested Intalok® assembly represents a complete system build-up, including material, support framework, insulation and fixings, assessed together to reflect real-world performance.

The Intalok® Reveal Panel system can be specified in a range of materials and construction options to suit different project requirements. While these variations offer design flexibility, the CWCT test relates to a defined configuration. Contact us for full details of the tested construction and guidance on suitable options for your project.

AVAILABLE IN A RANGE OF COMBINATIONS

Available in a range of specifications to meet your design and functional requirements, our reveal panels offer a perfect blend of aesthetics and performance. Choose from a variety of finishes, colours, and sizes to seamlessly integrate our reveal panels into your design vision. Our team of experts are dedicated to guiding you through the selection process, providing valuable insights, and offering solutions that align with your project goals.

Code	Module	Face	Shadow Gap	Length
RP-300/0 (ex zinc)	300mm	300mm	0mm	Up to 4000mm
RP-297/3	300mm	297mm	3mm	Up to 4000mm
RP-290/10	300mm	290mm	10mm	Up to 4000mm
RP-280/20	300mm	280mm	20mm	Up to 4000mm
