Designed for flat standing seam, PowerSeam is an unobtrusive, Monocrystalline solar option providing performance and reliability in a fixed size, light weight panel format.

Lightweight & Discreet PV Solar

PowerSeam Solar in a nutshell

PowerSeam is a high efficiency monocrystalline solar module designed to work with standing seam roofing systems. PowerSeam modules are lightweight requiring no extra structural support or fittings. They bond directly to the roof material sitting between standing seams. Wiring is hidden under the roof ridge flashings so panels have minimum impact to your roof design.

High performance monocrystalline modules
Purpose designed to work with standing seam roofing systems
Lightweight requiring no extra structural support or fittings
Fixed sized modules bond directly to the flat roof material

HIGH TECH DESIGN DELIVERING RELIABLE PERFORMANCE

PowerSeam modules are supplied as fixed size panels and offer a further option when seeking a discreet solar solution for standing seam roofs usually with shorter delivery times.

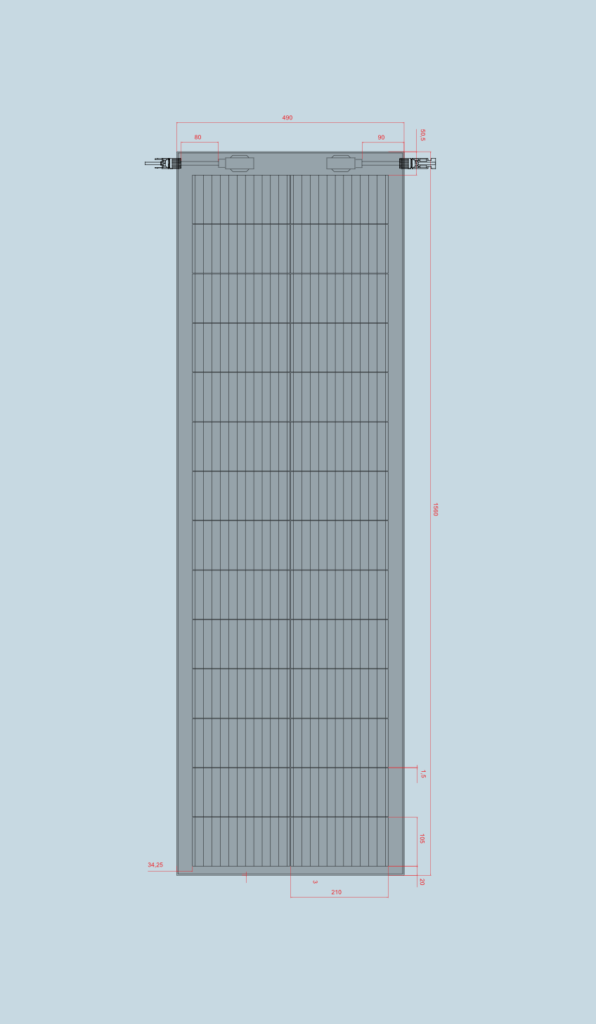

Wiring is connected at the roof ridge and incorporated in the initial design stage to ensure connection is hidden. The 1560mm length is suitable for many roof design and can be applied to most standing seam metals by use of a strong weatherproof adhesive.

The stick-on bonding approach can often be a viable retro fit solution for suitably prepared standing seam when wiring can be applied inside the ridge work.

POWERSEAM FIXED LENGTH SOLAR PANELS FOR FLAT STANDING SEAM ROOFS

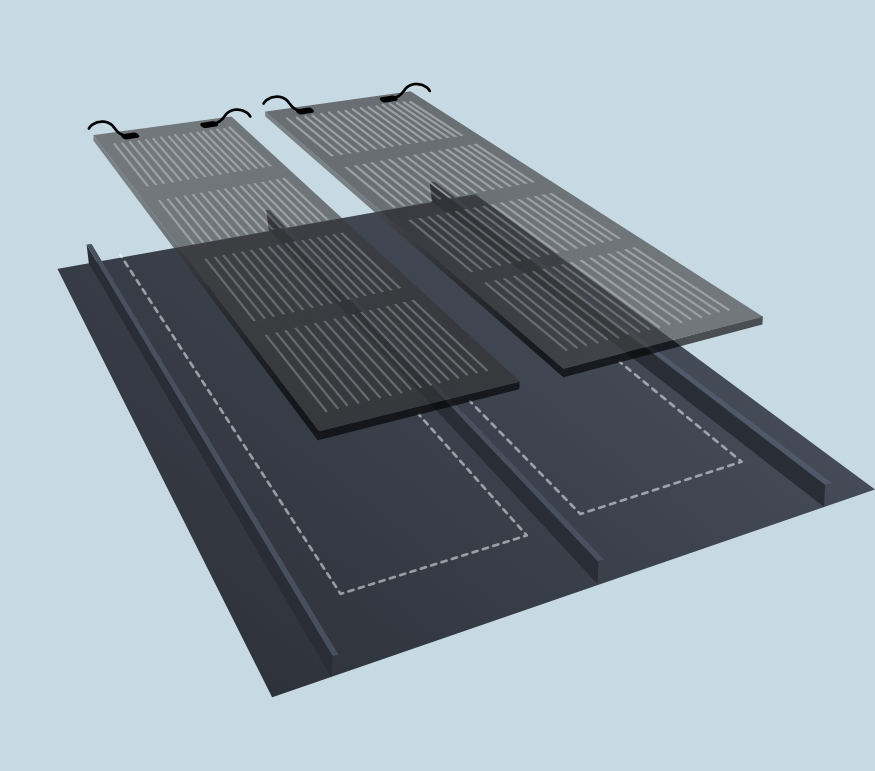

PowerSeam by EDE is a photovoltaic PV system that delivers the advantages of high efficiency monocrystalline modules. The panels are purpose designed to work with standing seam roofing systems. Unlike other solar options, PowerSeam is lightweight requiring no extra structural support or fittings. The fixed sized modules bond directly to the roof material where a standing seam system has been utilised. Solar panel modules sit between the seams with wiring connected in serial, panel to panel, hidden under the roof ridge flashings. ProwerSeam provides reliable performance in a discreet panel that complements the aesthetics of your roof design.

PowerSeam Solar Retains the Benefits of Standing Seam Without Introducing Sealants or Linear Joints

Some solar products can degrade the standing seam integrity by compromising the aesthics, adding otherwise unnecessary linear joints or imposing heavy structural additions for support.

PowerSeam along with our other solar options have been specially selected to work well with fully supported standing seam roofing.

With appropriate preparation and priming, PowerSeam solar panels can be bonded to Aluminium, GreenCoat Colourful Steel, Stainless Steel and Copper. It is also possible to retro-fit PowerSeam solar to existing standing seam roofs with relatively low imapct.

Talk to our technical team and solar partners for advice on the right solar choice for your roof.

Fixed length panels, usually available with shorter delivery times and predictable performance
Discreet panels with wires hidden under roof ridge
Take advantage of the full aesthetics associated with standing seam without penetrating or compromising full length ridge to gutter weathertight integrity
High efficiency monocrystalline solar modules
Solar panels designed for flat surfaces featuring a low maintenance surface
Bonded to roof material with no ballast, penetrations or racking required
Flush fit with roof material avoids buildup of dirt, debris or problems with nesting animals or other pests
Low installed weight requiring no additional support or roof penetrations
Multiple bypass diode design to improve performance in shading/low light

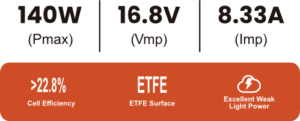

Electrical Characteristics
Model	SR-140W
Max Power/Pmax	140W
Max Power Voltage/Vmp	16.8V
Max Power Current/Imp	8.33A
Open Circuit Voltage/Voc	20.16V
Short Circuit Current/Isc	9.16A
Maximum System Voltage	1500V
Series Fuse Rating	20A
Cell Efficiency	>23.8%
Number of Cells in Series	28
Cell Dimension	210*105mm
Max Power Tolerance	±3%
* STC: Irradiance 1000W/m², Cell Temperature 25°C, AM 1.5

Mechanical Characteristics
Weight	5.1kg
Dimension	15604903mm
Junction Box	Junction box on the front
Cable	80cm 2.5mm² MC4 connector

Temperature Co-efficients
Power temperature coefficient	-0.27%/¥
Voltage temperature coefficient	-0.24%/¥
Current temperature coefficient	+0.06%/¥
Operating Temperature	-40¥~85¥
