Suitable for flat or contoured standing seam roofs, Photonic Universe SELM is an unobtrusive, fixed-size CIGS solar option providing performance and reliability in a light weight and flexible panel format.

SELM Lightweight & Discreet Solar

Photonic Universe SELM Solar in a nutshell

Photonic Universe SELM is a fixed size CIGS (Copper Indium Gallium Selenide) solar module designed to work with standing seam roofing systems. Photonic Universe SELM modules are lightweight requiring no extra structural support or fittings. They bond directly to the roof material sitting between standing seams. Wiring is hidden under the roof ridge flashings so panels have minimum impact to your roof design.

Efficient CIGS modules
Purpose designed to work with standing seam roofing systems
Lightweight requiring no extra structural support or fittings
Flexible fixed sized modules bond directly to the flat or curved roof surface

HIGH TECH DESIGN DELIVERING RELIABLE PERFORMANCE

Photonic Universe SELM modules are supplied as fixed size panels and offer a further option when seeking a discreet solar solution for standing seam roofs usually with shorter delivery times.

Wiring is connected at the roof ridge and incorporated in the initial design stage to ensure connection is hidden. Options up to 4025mm length covers many roof dimensions.
The self-adhesive backing can be applied to the most standing seam metals. This stick-on bonding approach can often be a viable retro fit solution for suitably prepared standing seam when wiring can be applied inside the ridge work.

PHOTONIC UNIVERSE SELM FIXED LENGTH SOLAR PANELS FOR FLAT STANDING SEAM ROOFS

Photonic Universe SELM is a photovoltaic PV system that delivers the advantages of efficient CIGS cells. The panels are suitable for flat or curved standing seam roofing systems. Unlike other solar options, Photonic Universe SELM is lightweight requiring no extra structural support or fittings. The fixed sized modules bond directly to the roof material where a standing seam system has been utilised. Solar panel modules sit between the seams with wiring connected in serial, panel to panel, hidden under the roof ridge flashings. Photonic Universe SELM provides reliable performance in a discreet panel that complements the aesthetics of your roof design.

Photonic Universe SELM Solar Retains the Benefits of Standing Seam Without Introducing Sealants or Linear Joints

Some solar products can degrade the standing seam integrity by compromising the aesthetics, adding otherwise unnecessary linear joints or imposing heavy structural additions for support.

Photonic Universe SELM along with our other solar options have been specially selected to work well with fully supported standing seam roofing.

With appropriate preparation and priming, Photonic Universe SELM solar panels can be bonded to Aluminium, GreenCoat Colourful Steel, Stainless Steel and Copper. It is also possible to retro-fit Photonic Universe SELM solar to existing standing seam roofs with relatively low impact.

Talk to our technical team and solar partners for advice on the right solar choice for your roof.

Fixed length panels, usually available with shorter delivery times and predictable performance
Discreet panels with wires hidden under roof ridge
Take advantage of the full aesthetics associated with standing seam without penetrating or compromising full length ridge to gutter weathertight integrity
Efficient CIGS cell solar modules
Flexible solar panels can be applied to flat standing seam surafces or curved roofs
Bonded to roof material with no ballast, penetrations or racking required
Flush fit with roof material avoids buildup of dirt, debris or problems with nesting animals or other pests
Low installed weight requiring no additional support or roof penetrations

Electrical Characteristics
Model	SELM 2 x 24
Nominal Power, PMAX**	165W
Power/m2	114.5 W/m²
Power/kg	41.3 W/kg
Maximum Power Voltage, VMPP	25.0 V
Maximum Power Current, IMPP	6.7 A
Open Circuit Voltage, VOC**	30.4 V
Short Circuit Current, ISC**	7.7 A
Maximum Series Fuse Rating	10 A
Maximum System Voltage, VDC	1000 V
Protection class against electrical shock	II
Design Load***	± 3600 Pa
Module operating range	-40 to +85 °C

Temperature Co-efficients
Model	SELM 2 x 24
PMAX (W), γ	-0.3992 % / °C
VOC (V), β	-0.3279 % / °C
ISC (A), α	0.0099 % / °C
Module operating range	-40 to +85 °C

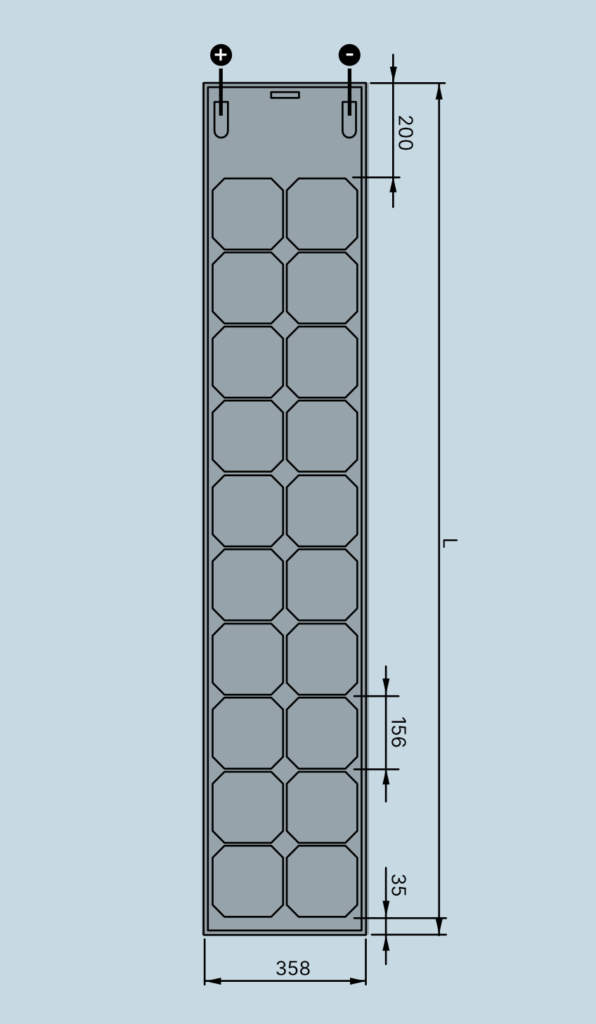

Mechanical Characteristics
Model	SELM 2 x 24
Number of cells (1 bypass diode between each cell)	48
Weight	4 kg/panel
Width	358 ±5 mm
Length	4025 ±10mm
Thickness	2 ±0,5 mm
Roof pitch	min 5.7 °
Minimum bend radius	0,25 m
Cell type thin film	CIGS (Cu (In, Ga) Se2)
Manufacturers Product Warranty	10 years
Power guarantee after 10 years	90 %
Power guarantee after 25 years	80 %
Certifications (TÜV Rheinland certified)	IEC 61730, IEC 61215 (ongoing for SELM8)
Fire Safety	BROOF (t2)*

* Classification has been carried out by RISE Research Institutes of Sweden AB in accordance with EN 13501-5-2016.
** Testing performed at STC (Standard test conditions): solar radiation of 1000 W/m2 with perpendicular incidence towards
the module surface, module temperature 25°C, Air mass 1.5 (AM 1.5 spectrum). The tolerance for the value is ±10%.
*** Test load ± 5400 Pa, Max altitude: 2000 m.

Photonic Universe SELM2
Product Name	Number of Cells	Length (mm)	Extended Length (mm)	Pmax (W)	Voc (V)	Isc (A)	Vmp (V)	Imp (A)
2 x 4	8	865	1025	25	5.1	7.6	3.8	6.6
2 x 5	10	1023	1183	35	6.4	7.6	5.3	6.6
2 x 6	12	1181	1341	40	6.7	7.6	6.0	6.6
2 x 7	14	1339	1499	45	8.9	7.6	6.8	6.6
2 x 8	16	1497	1657	55	10.1	7.6	8.3	6.6
2 x 9	18	1655	1815	60	11.4	7.6	9.0	6.6
2 x 10	20	1813	1973	65	12.6	7.6	9.8	6.6
2 x 11	22	1971	2131	75	13.9	7.6	11.4	6.6
2 x 12	24	2129	2289	80	15.2	7.6	12.1	6.6
2 x 14	28	2445	2605	95	17.7	7.6	14.4	6.6
2 x 16	32	2761	2921	110	20.3	7.6	16.7	6.6
2 x 18	36	3077	3237	125	22.9	7.6	18.9	6.6
2 x 20	40	3393	3553	140	25.5	7.6	21.2	6.6
2 x 22	44	3709	3869	150	27.8	7.6	22.7	6.6
2 x 24	48	4025	4185	165	30.4	7.6	25.0	6.6
