SNAPLOCK® SEAM SYSTEM

The Snaplock® Seam system can be laid on a ventilated timber substrate, metal profile panel, hard metal board, composite panel or direct on insulation, using special warm roof fixing clips. Snaplock® is much simpler and requires less skill / hand tools than the traditional standing seam.

Seams are available in 25mm / 38mm formats, in GreenCoat PLX, copper, stainless steel or precoated aluminium and can be supplied with all the necessary traditional flashings and accessories.

Download Brochure

ADVANTAGES OF CHOOSING A SNAPLOCK® SEAM SYSTEM

The Snaplock® system from Metal Solutions is an evolution of the traditional hard metal roofing system. The Snaplock® system reduces on-site time and associated processes thanks to a quick installation process. Professionally manufactured off-site, it can be delivered in project specific tray lengths, reducing waste and scrap generated using other techniques. The simplicity of the system makes for a straightforward installation.

Manufactured from lightweight corrosion resistant materials, this quick and ready to install system offers a durable low maintenance solution. The Snaplock® system can be provided as a complete roof kit including all flashings, matching rainwater products and ancillaries. It is suitable for both roof and façade applications.

The Snaplock® System interlocking design ensures a tight and durable connection, providing peace of mind for both residential and commercial applications. It has been designed with precision to ensure a perfect fit and hassle-free installation.

Suitable for all Metal Buildings

The Snaplock standing seam system is an evolution of the traditional hard metal system, offering all the same benefits with quick installation and less time needed on-site.

Seams are available in 25mm or 38mm formats

As well as the aesthetic reasons for a choice of seam heights, 38mm standing seam is more suitable for lower roof pitches.

Lightweight and Eco-Friendly

This lightweight characteristic not only simplifies installation but also reduces the need for additional structural support, making it an ideal choice for a wide range of building types.

Can be provided as a complete system

Includes all flashings, matching rainwater products and ancillaries for a top-tier roofing system.

SNAPLOCK® SYSTEM INSTALLATION

The Snaplock® profile contains an undercloak and an overcloak – the undercloak side is fixed with a stainless steel fixing clip and the over-cloak side is then simply ‘snapped’ into place.

Metal Solutions are able to provide assistance from concept to completion. Snaplock® Technical & Installation guide and standard detail drawings are available on request.

REQUEST A QUOTE

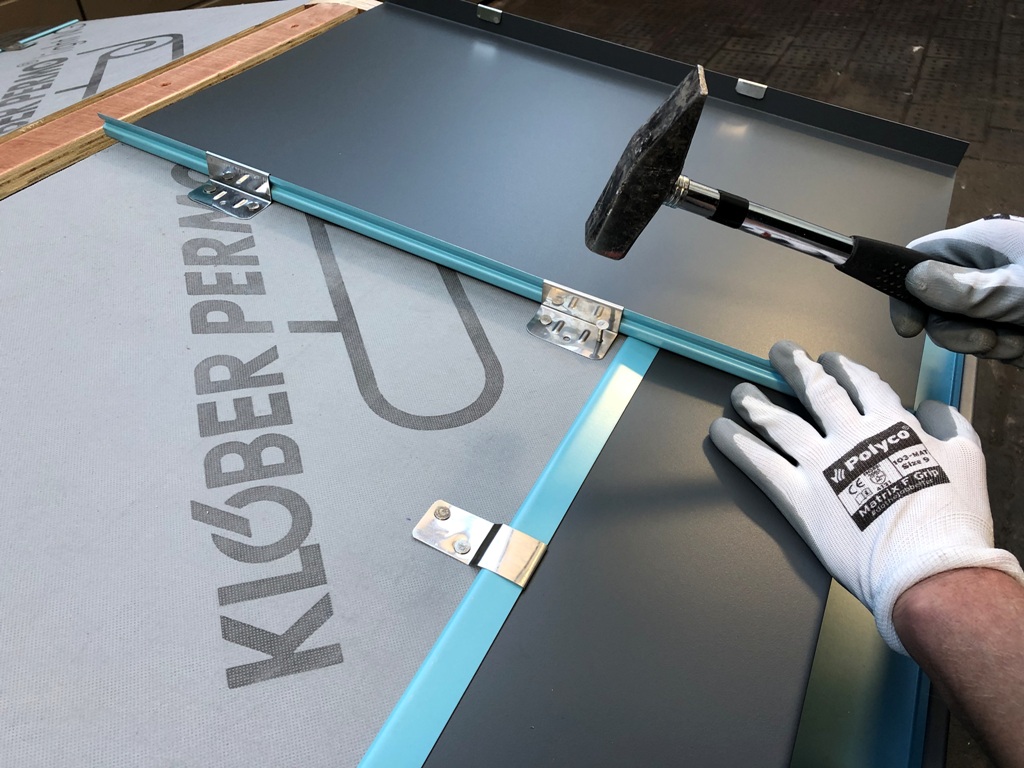

6 Fix Snaplock® Seam Panel Installation

AVAILABLE IN A RANGE OF STANDARD SEAM HEIGHTS AND MODULE WIDTHS


For more information or to explore the diverse options available with the Snaplock® Seam System, contact our team today. Our experts are ready to provide personalised assistance, answer any questions, and guide you through the selection process, ensuring that your roofing choice aligns perfectly with your vision.

Code

Seam Height

Module Width

Max Length

SL-25/425

25mm

425mm

11m

SL-38/386

38mm

386mm

11m
